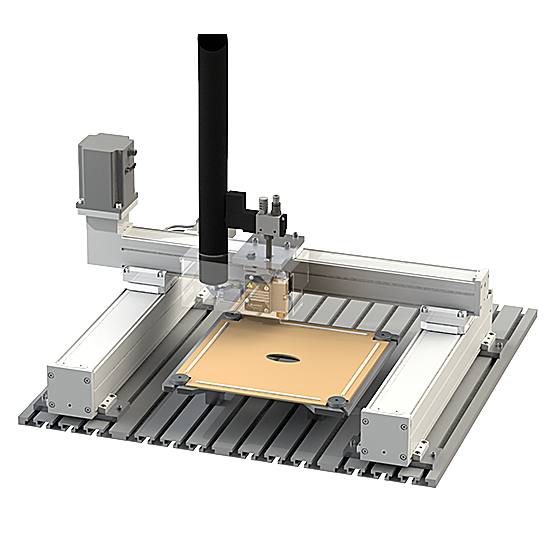

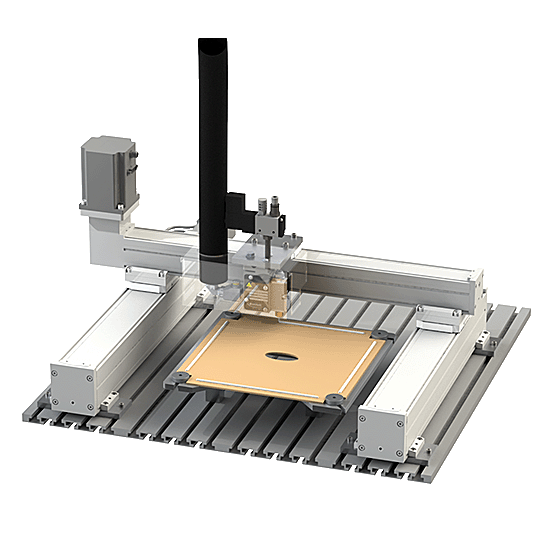

XY glue plotter
SmartPlot
XY glue plotter
Smart, precise glue dispensing.

CNC controlled hot-melt and cold-glue dispensing on flat parts

In the competitive landscape of packaging and display manufacturing, precision and speed are the cornerstones of success. SmartPlot is a state-of-the-art XY Glue Plotter engineered for the precise dispensing of both hot-melt and cold adhesives. As a CNC-controlled glue dispensing machine, it is specifically designed to transform how manufacturers handle flat parts, moving them from slow, manual processes to high-speed automation.

What is a SmartPlot XY Glue Plotter?

A SmartPlot XY Glue Plotter (often referred to as an XY gluer or glue plotter) is an automatic gluing machine that uses computer-controlled axes to apply adhesive in precise patterns. Unlike manual handheld dispensers, this plotter machine follows a digital CAD path, ensuring that every drop of glue is placed exactly where it needs to be, every single time.

Revolutionizing Manufacturing with the Automatic XY Glue Plotter Machine

The SmartPlot is the ideal glue machine for high-volume manufacturing. If your facility produces POP/POS displays, floor displays, hang shells, or rigid boxes, the SmartPlot is your gateway to industrial efficiency.

Key Industrial Applications:

1. POP/POS Displays:
Create sturdy, clean, and professional point-of-sale units.
2. Rigid Boxes:
Achieve high-end luxury packaging with perfect adhesive lines.
3. Floor Displays:
Handle large-format gluing with ease and structural integrity.
4. Hang Shells:
Rapidly apply glue to intricate shapes without mess or waste.

Why Choose SmartPlot Over Manual Glue Dispensing?

Many manufacturers still rely on manual glue dispensing, which often leads to inconsistent quality, high labor costs, and significant adhesive wastage. Transitioning to an automatic xy glue plotter machine offers:
1. Maximum Speed, Minimal Manpower:
With axes speeds reaching up to 1000mm/s, the SmartPlot does the work of multiple manual operators in a fraction of the time.
2. Zero Wastage:
Precise glue dispensing control via PLC programs ensures you use only the exact amount of adhesive required, lowering your material costs.
3. Hassle-Free Operation:
Every new part setup simply requires the user to upload a new drawing to the system. This makes it the most flexible XY glue machine on the market.

Technical Excellence: The SmartPlot Advantage

The SmartPlot isn’t just a gluing machine; it is a precision instrument designed for innovation.
1. Customizable Work Area:
Depending on your product size, the machine can be customized for a work area of up to 2400mm X 1200mm, making it a versatile XY plotter online search favorite for large-scale displays.
2. Integrated Nordson Systems:
To ensure world-class performance, the SmartPlot comes equipped with hot melt glue dispensing and cold adhesive systems from Nordson, the global leader in adhesive technology.
3. Long-Term Durability:
These systems are built for the long haul. With minimal wear-and-tear components, a well-maintained SmartPlot can perform for over 10 years.
4. Smart Controls:
Features an in-built batch and master counter, allowing production managers to track output with total transparency.
Designed for innovation
Maximum speed, minimal manpower
Customised design for large products.
Understanding SmartPlot better!

1. Speed & Efficiency

2. Precision & Flexibility

3. Hassle free operation with reduced manual labour for reduced costs and time

4. Zero wastage

5. Glue dispensing control using CAD drawing and PLC program

6. In-built batch and master counter

1. SmartPlot is best suited for high volume manufacturing of POP/POS displays, floor displays, hang shells, rigid boxes, among others.

Features

1. Speed & Efficiency

2. Precision & Flexibility

3. Hassle free operation with reduced manual labour for reduced costs and time

4. Zero wastage

5. Glue dispensing control using CAD drawing and PLC program

6. In-built batch and master counter

Industrial Application

1. SmartPlot is best suited for high volume manufacturing of POP/POS displays, floor displays, hang shells, rigid boxes, among others.

Live video explaining SmartPlot
SmartPlot By Mahisa Packaging Systems LLP
SmartPlot By Mahisa Packaging Systems LLP
1 of 1
Image gallery for SmartPlot

FAQ

An XY glue plotter is a CNC-controlled automatic gluing machine that applies adhesive onto flat surfaces with high precision. Using a dual-axis (X and Y) movement system, it replaces manual glue guns to provide consistent, high-speed glue dispensing for industrial manufacturing.

An automatic glue dispensing machine increases throughput by operating at speeds up to 1000mm/s. It eliminates human error, reduces adhesive wastage through precise PLC control, and allows one operator to manage multiple tasks, significantly lowering labor costs in POP/POS display assembly.

Yes. The SmartPlot is a versatile glue machine equipped with Nordson dispensing systems. It can be configured for hot melt glue dispensing, cold adhesive application, or both, making it suitable for a wide variety of substrates like corrugated cardboard and rigid plastics.

The XY glue machine is primarily used in the packaging and display industries. It is the gold standard for manufacturing POP/POS displays, floor displays, hang shells, and rigid boxes, where complex glue paths and structural integrity are required.

Not at all. The SmartPlot plotter machine is designed for flexibility. Operators simply upload a new CAD drawing to the system to define the gluing paths. This allows for rapid changeovers between different product runs with minimal downtime.

The SmartPlot is a highly customized gluing machine. While standard sizes are available, it can be built to accommodate a work area of up to 2400mm x 1200mm, allowing it to handle even the largest floor displays used in retail environments.

With minimal wear-and-tear components and a robust industrial design, a well-maintained automatic XY glue plotter machine can perform for over 10 years. Routine maintenance is simple, ensuring long-term reliability for high-volume production lines.
